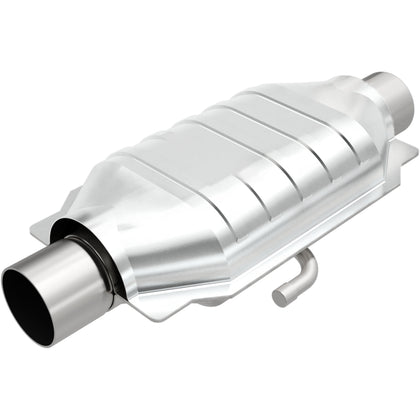

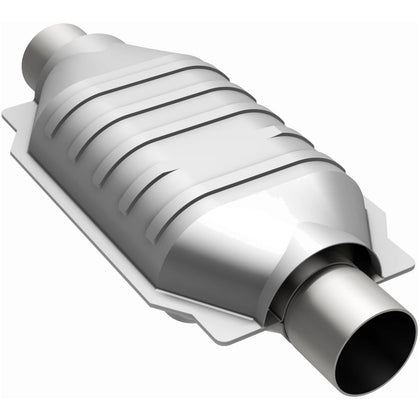

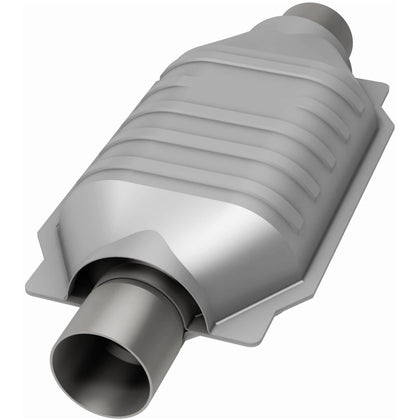

MagnaFlow Standard Grade Federal / EPA Compliant Universal Catalytic Converter 93516
SKU: 93516
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- Not legal for sale or installation in California, Colorado or New York.
- INLET TYPE
- Pipe Connection
- CLAMPS INCLUDED
- No
- HANGERS INCLUDED
- No
- SERIES
- Standard Grade
MATERIAL
Stainless Steel
BODY TYPE
Clam-Shell
FINISH
Stainless
FEATURES

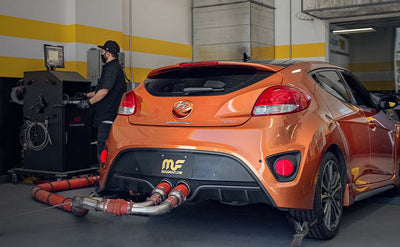

FEDERAL/EPA COMPLIANT
Extensive testing and certification processes are followed to guarantee that this catalytic converter meets emissions standards set by the Federal EPA.
STANDARD GRADE
This catalytic converter is built to Standard Grade standards, matching the performance and quality of your vehicle’s original catalytic converter.

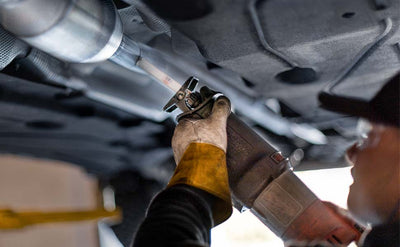

UNIVERSAL INSTALLATION
Universal catalytic converters allow you to place it in the exact location and orientation required for your vehicle. Professional installation is highly recommended.

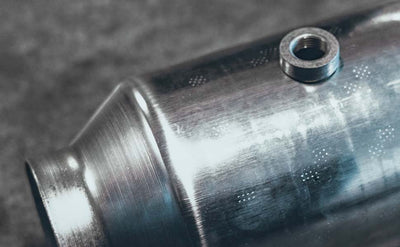

DURABLE CONSTRUCTION
Durable stainless-steel construction and integrated OEM-like O2 ports guarantee optimal catalytic converter performance and reliability.
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- INLET TYPE
- Pipe Connection
- CLAMPS INCLUDED
- No
- HANGERS INCLUDED
- No
- SERIES
- Standard Grade
- MATERIAL
- Stainless Steel
- BODY TYPE
- Clam-Shell
- FINISH
- Stainless
- TUBE MATERIAL
- Stainless Steel
- OUTLET TYPE
- Pipe Connection
- INLET INSIDE DIAMETER
- 2.5IN
- BODY HEIGHT
- 3.75IN
- BODY LENGTH
- 12IN
- BODY WIDTH
- 6.375IN
- HEAT SHIELD ATTACHED
- Yes
- INLET QUANTITY
- 1
- BODY MATERIAL
- Stainless Steel
- OUTLET INSIDE DIAMETER
- 2.5IN
- OUTLET QUANTITY
- 1
- CALIFORNIA AIR RESOURCES BOARD (CARB) CERTIFIED
- No
- SUBSTRATE MATERIAL
- Ceramic
- UNIVERSAL OR SPECIFIC FIT
- Universal
- GRADE TYPE
- Regular
- BODY SHAPE
- Oval
- INLET GASKET INCLUDED
- No
- INLET MOUNTING HARDWARE INCLUDED
- No
- OUTLET GASKET INCLUDED
- No
- OUTLET MOUNTING HARDWARE INCLUDED
- No
- OVERALL LENGTH
- 16IN
- AIR TUBE COUNT
- 1
- SENSOR PORT COUNT
- 0
- NEW YORK CERTIFIED
- No
- HEAT SHIELD MATERIAL
- Aluminized Steel
- INLET ORIENTATION
- Straight
- OUTLET ORIENTATION
- Straight
- AIR TUBE ADAPTABLE
- Yes
- CARB EXECUTIVE ORDER NUMBER
- Not Applicable
WARRANTY
EMISSIONS WARRANTY
CONSTRUCTION WARRANTY
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
CADILLAC
YEAR
MODEL
ENGINE
1980
Eldorado
V8 6.0L
CHEVROLET
YEAR
MODEL
ENGINE
1981
C10
V8 5.7L
DODGE
YEAR
MODEL
ENGINE
2002
Ram 3500
V10 8.0L
2002
Ram 2500
V10 8.0L
1995
Ram 3500
V10 8.0L
1994
Ram 3500
V10 8.0L
1988
D150
V8 5.9L
1988
D100
V8 5.9L
1987
D150
V8 5.2L
1987
D150
V8 5.9L
1987
D100
V8 5.2L
1987
D100
V8 5.9L
1986
D150
V8 5.2L
1986
D150
V8 5.9L
1986
D100
V8 5.2L
1986
D100
V8 5.9L
1985
D150
V8 5.2L
1985
D150
V8 5.9L
1984
D150
V8 5.2L
1984
D150
V8 5.9L
1984
D100
V8 5.2L
1984
D100
V8 5.9L
1983
D150
V8 5.2L
1982
D150
V8 5.2L
1982
D150
V8 5.9L
FORD
YEAR
MODEL
ENGINE
1996
F-150
V8 5.8L
1995
F-350
L6 4.9L
1995
F-250
V8 5.8L
1995
F-250
L6 4.9L
1995
F-150
L6 4.9L
1995
F-150
V8 5.8L
1995
E-350 Econoline Club Wagon
L6 4.9L
1995
E-350 Econoline
L6 4.9L
1995
E-250 Econoline
L6 4.9L
1995
E-250 Econoline
V8 5.8L
1995
E-150 Econoline Club Wagon
L6 4.9L
1995
E-150 Econoline Club Wagon
V8 5.8L
1995
E-150 Econoline
L6 4.9L
1995
E-150 Econoline
V8 5.8L
1994
F-350
L6 4.9L
1994
F-250
V8 5.8L
1994
F-250
L6 4.9L
1994
F-150
L6 4.9L
1994
F-150
V8 5.8L
1994
E-350 Econoline Club Wagon
L6 4.9L
1994
E-350 Econoline
L6 4.9L
1994
E-250 Econoline
L6 4.9L
1994
E-250 Econoline
V8 5.8L
1994
E-150 Econoline Club Wagon
L6 4.9L
1994
E-150 Econoline Club Wagon
V8 5.8L
1994
E-150 Econoline
L6 4.9L
1994
E-150 Econoline
V8 5.8L
1993
F-350
L6 4.9L
1993
F-250
V8 5.8L
1993
F-250
L6 4.9L
1993
F-150
V8 5.8L
1993
F-150
L6 4.9L
1993
E-350 Econoline Club Wagon
L6 4.9L
1993
E-350 Econoline
L6 4.9L
1993
E-250 Econoline
L6 4.9L
1993
E-250 Econoline
V8 5.8L
1993
E-150 Econoline Club Wagon
L6 4.9L
1993
E-150 Econoline Club Wagon
V8 5.8L
1993
E-150 Econoline
L6 4.9L
1993
E-150 Econoline
V8 5.8L
1993
Bronco
V8 5.8L
1992
F-350
L6 4.9L
1992
F-250
V8 5.8L
1992
F-250
L6 4.9L
1992
F-150
V8 5.8L
1992
F-150
L6 4.9L
1992
E-350 Econoline Club Wagon
L6 4.9L
1992
E-350 Econoline
L6 4.9L
1992
E-250 Econoline
L6 4.9L
1992
E-250 Econoline
V8 5.8L
1992
E-150 Econoline Club Wagon
L6 4.9L
1992
E-150 Econoline Club Wagon
V8 5.8L
1992
E-150 Econoline
L6 4.9L
1992
E-150 Econoline
V8 5.8L
1992
Bronco
L6 4.9L
1992
Bronco
V8 5.8L
1991
F-350
L6 4.9L
1991
F-250
V8 5.8L
1991
F-250
L6 4.9L
1991
F-150
V8 5.8L
1991
F-150
L6 4.9L
1991
E-350 Econoline Club Wagon
L6 4.9L
1991
E-350 Econoline
L6 4.9L
1991
E-250 Econoline Club Wagon
L6 4.9L
1991
E-250 Econoline Club Wagon
V8 5.8L
1991
E-250 Econoline
V8 5.0L
1991
E-250 Econoline
L6 4.9L
1991
E-250 Econoline
V8 5.8L
1991
E-150 Econoline Club Wagon
V8 5.0L
1991
E-150 Econoline Club Wagon
L6 4.9L
1991
E-150 Econoline Club Wagon
V8 5.8L
1991
E-150 Econoline
V8 5.0L
1991
E-150 Econoline
L6 4.9L
1991
E-150 Econoline
V8 5.8L
1991
Bronco
L6 4.9L
1991
Bronco
V8 5.8L
1990
F-350
L6 4.9L
1990
F-250
V8 5.8L
1990
F-250
L6 4.9L
1990
F-150
V8 5.8L
1990
F-150
L6 4.9L
1990
E-350 Econoline Club Wagon
L6 4.9L
1990
E-350 Econoline
L6 4.9L
1990
E-250 Econoline Club Wagon
L6 4.9L
1990
E-250 Econoline Club Wagon
V8 5.8L
1990
E-250 Econoline
V8 5.0L
1990
E-250 Econoline
L6 4.9L
1990
E-250 Econoline
V8 5.8L
1990
E-150 Econoline Club Wagon
V8 5.0L
1990
E-150 Econoline Club Wagon
L6 4.9L
1990
E-150 Econoline Club Wagon
V8 5.8L
1990
E-150 Econoline
V8 5.0L
1990
E-150 Econoline
L6 4.9L
1990
E-150 Econoline
V8 5.8L
1990
Bronco
V8 5.8L
1990
Bronco
L6 4.9L
1989
F-350
L6 4.9L
1989
F-250
V8 5.8L
1989
F-250
L6 4.9L
1989
F-150
V8 5.8L
1989
F-150
L6 4.9L
1989
E-350 Econoline Club Wagon
L6 4.9L
1989
E-350 Econoline
L6 4.9L
1989
E-250 Econoline Club Wagon
L6 4.9L
1989
E-250 Econoline Club Wagon
V8 5.8L
1989
E-250 Econoline
V8 5.0L
1989
E-250 Econoline
L6 4.9L
1989
E-250 Econoline
V8 5.8L
1989
E-150 Econoline Club Wagon
V8 5.0L
1989
E-150 Econoline Club Wagon
L6 4.9L
1989
E-150 Econoline Club Wagon
V8 5.8L
1989
E-150 Econoline
V8 5.0L
1989
E-150 Econoline
L6 4.9L
1989
E-150 Econoline
V8 5.8L
1989
Bronco
V8 5.8L
1989
Bronco
L6 4.9L
1988
F-350
L6 4.9L
1988
F-250
V8 5.8L
1988
F-250
L6 4.9L
1988
F-150
V8 5.8L
1988
F-150
L6 4.9L
1988
E-350 Econoline Club Wagon
L6 4.9L
1988
E-350 Econoline
L6 4.9L
1988
E-250 Econoline Club Wagon
L6 4.9L
1988
E-250 Econoline Club Wagon
V8 5.8L
1988
E-250 Econoline
V8 5.0L
1988
E-250 Econoline
L6 4.9L
1988
E-250 Econoline
V8 5.8L
1988
E-150 Econoline Club Wagon
V8 5.0L
1988
E-150 Econoline Club Wagon
L6 4.9L
1988
E-150 Econoline Club Wagon
V8 5.8L
1988
E-150 Econoline
V8 5.0L
1988
E-150 Econoline
L6 4.9L
1988
E-150 Econoline
V8 5.8L
1988
Bronco
V8 5.8L
1988
Bronco
L6 4.9L
1987
F-350
L6 4.9L
1987
F-350
V8 5.8L
1987
F-250
V8 5.8L
1987
F-250
L6 4.9L
1987
F-150
L6 4.9L
1987
F-150
V8 5.8L
1987
E-350 Econoline Club Wagon
V8 5.8L
1987
E-350 Econoline Club Wagon
L6 4.9L
1987
E-350 Econoline
V8 5.8L
1987
E-350 Econoline
L6 4.9L
1987
E-250 Econoline Club Wagon
V8 5.8L
1987
E-250 Econoline Club Wagon
L6 4.9L
1987
E-250 Econoline
V8 5.8L
1987
E-250 Econoline
V8 5.0L
1987
E-250 Econoline
L6 4.9L
1987
E-150 Econoline Club Wagon
V8 5.8L
1987
E-150 Econoline Club Wagon
V8 5.0L
1987
E-150 Econoline Club Wagon
L6 4.9L
1987
E-150 Econoline
V8 5.8L
1987
E-150 Econoline
V8 5.0L
1987
E-150 Econoline
L6 4.9L
1987
Bronco
V8 5.8L
1987
Bronco
L6 4.9L
1986
F-350
V8 5.8L
1986
F-250
V8 5.8L
1986
F-150
V8 5.8L
1986
E-350 Econoline Club Wagon
V8 5.8L
1986
E-350 Econoline
V8 5.8L
1986
E-250 Econoline Club Wagon
V8 5.8L
1986
E-250 Econoline
V8 5.8L
1986
E-250 Econoline
V8 5.0L
1986
E-150 Econoline Club Wagon
V8 5.8L
1986
E-150 Econoline Club Wagon
V8 5.0L
1986
E-150 Econoline
V8 5.8L
1986
E-150 Econoline
V8 5.0L
1986
Bronco
V8 5.8L
1986
Bronco
L6 4.9L
1985
Mustang
V8 5.0L
1985
F-350
V8 5.8L
1985
F-250
V8 5.8L
1985
F-150
V8 5.8L
1985
E-350 Econoline Club Wagon
V8 5.8L
1985
E-350 Econoline
V8 5.8L
1985
E-250 Econoline Club Wagon
V8 5.8L
1985
E-250 Econoline
V8 5.8L
1985
E-150 Econoline Club Wagon
V8 5.8L
1985
E-150 Econoline
V8 5.8L
1985
Bronco
V8 5.8L
1985
Bronco
L6 4.9L
1984
F-350
V8 5.8L
1984
F-250
V8 5.8L
1984
F-150
V8 5.8L
1984
E-350 Econoline Club Wagon
V8 5.8L
1984
E-350 Econoline
V8 5.8L
1984
E-250 Econoline Club Wagon
V8 5.8L
1984
E-250 Econoline
V8 5.8L
1984
E-150 Econoline Club Wagon
V8 5.8L
1984
E-150 Econoline
V8 5.8L
1984
Bronco
V8 5.8L
1984
Bronco
L6 4.9L
1983
F-250
V8 5.8L
1983
F-150
V8 5.8L
1982
F-250
V8 5.8L
1982
F-150
V8 5.8L
1982
E-250 Econoline
V8 5.0L
1982
E-150 Econoline Club Wagon
V8 5.0L
1982
E-150 Econoline
V8 5.0L
1982
E-100 Econoline Club Wagon
V8 5.0L
1982
E-100 Econoline
V8 5.0L
1981
E-250 Econoline
V8 5.0L
1981
E-150 Econoline Club Wagon
V8 5.0L
1981
E-150 Econoline
V8 5.0L
1981
E-100 Econoline Club Wagon
V8 5.0L
1981
E-100 Econoline
V8 5.0L
GMC
JEEP
YEAR
MODEL
ENGINE
1992
Wrangler
L4 2.5L
1992
Comanche
L4 2.5L
1991
Wrangler
L4 2.5L
1991
Comanche
L4 2.5L
