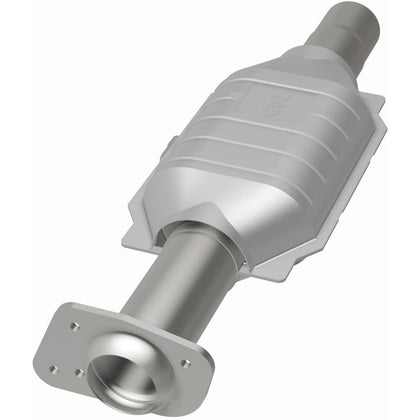

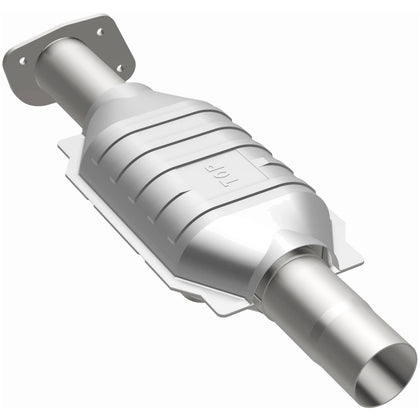

MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 3322456
SKU: 3322456
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- Legal For Sale In All 50 States Including California, Colorado, New York and Maine. Installation is permitted only if the vehicle’s Executive Order number and Engine Family Number appear in this converter’s CARB Executive Order.
- INLET TYPE
- Pipe Connection
- CLAMPS INCLUDED
- No
- HANGERS INCLUDED
- No
- SERIES
- California
MATERIAL
Stainless Steel
BODY TYPE
Clam-Shell
FINISH
Stainless
FEATURES

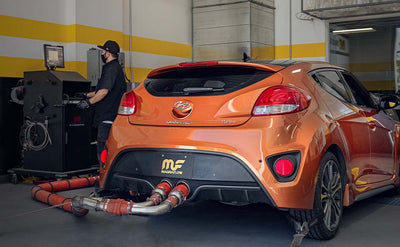

CALIFORNIA/CARB COMPLIANT
Extensive testing and certification processes are followed to guarantee that this catalytic converter meets emissions standards set by CARB (California Air Resources Board). This catalytic converter is also compliant in states adhering to these standards.
CARB GRADE
This catalytic converter is designed to meet California emissions standards, as well of those of other CARB-regulated states.

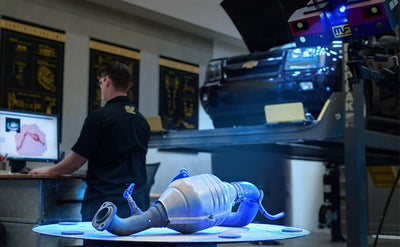

DIRECT-FIT INSTALLATION
State-Of-the-Art 3D scanning is used to ensure this direct-fit catalytic converter perfectly fits your vehicle, enabling do-it-yourself installation.

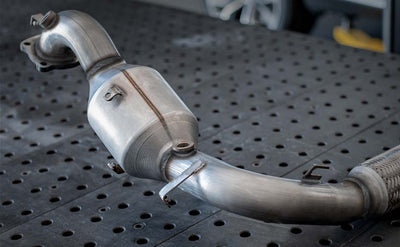

CUTTING EDGE DESIGN
Durable stainless-steel construction, mandrel bent piping, precisely manufactured flared receivers, OEM-like O2 port locations and integrated butt joints make installation easy while guaranteeing optimal performance.
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- INLET TYPE
- Pipe Connection
- CLAMPS INCLUDED
- No
- HANGERS INCLUDED
- No
- SERIES
- California
- MATERIAL
- Stainless Steel
- BODY TYPE
- Clam-Shell
- FINISH
- Stainless
- TUBE MATERIAL
- Stainless Steel
- OUTLET TYPE
- Flange
- INLET INSIDE DIAMETER
- 2.5IN
- BODY HEIGHT
- 3.75IN
- BODY LENGTH
- 12IN
- BODY WIDTH
- 7IN
- HEAT SHIELD ATTACHED
- Yes
- INLET QUANTITY
- 1
- BODY MATERIAL
- Stainless Steel
- OUTLET INSIDE DIAMETER
- 2.5IN
- OUTLET QUANTITY
- 1
- CALIFORNIA AIR RESOURCES BOARD (CARB) CERTIFIED
- Yes
- SUBSTRATE MATERIAL
- Ceramic
- UNIVERSAL OR SPECIFIC FIT
- Specific
- GRADE TYPE
- Regular
- BODY SHAPE
- Oval
- INLET GASKET INCLUDED
- No
- INLET MOUNTING HARDWARE INCLUDED
- No
- OUTLET GASKET INCLUDED
- No
- OUTLET MOUNTING HARDWARE INCLUDED
- No
- OVERALL LENGTH
- 23IN
- AIR TUBE COUNT
- 1
- SENSOR PORT COUNT
- 0
- NEW YORK CERTIFIED
- Yes
- HEAT SHIELD MATERIAL
- Aluminized Steel
- AIR TUBE ADAPTABLE
- Yes
- CARB EXECUTIVE ORDER NUMBER
- D-193-160
WARRANTY
CONSTRUCTION WARRANTY
EMISSIONS WARRANTY
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
BUICK
CADILLAC
CHEVROLET
YEAR
MODEL
ENGINE
1993
Caprice
V6 4.3L
1993
Caprice
V8 5.7L
1993
Caprice
V8 5.0L
1992
Caprice
V6 4.3L
1992
Caprice
V8 5.0L
1992
Caprice
V8 5.7L
1992
Camaro
V6 3.1L
1992
Camaro
V8 5.0L
1991
Caprice
V8 5.0L
1991
Caprice
V8 5.7L
1991
Camaro
V6 3.1L
1991
Camaro
V8 5.0L
1990
Caprice
V8 5.7L
1990
Camaro
V6 3.1L
1990
Camaro
V8 5.0L
1989
Caprice
V8 5.7L
1989
Camaro
V6 2.8L
1989
Camaro
V8 5.0L
1988
Monte Carlo
V8 5.0L
1988
Caprice
V8 5.7L
1988
Camaro
V6 2.8L
1988
Camaro
V8 5.0L
1987
Monte Carlo
V8 5.0L
1987
El Camino
V8 5.0L
1987
Caprice
V8 5.7L
1987
Camaro
V6 2.8L
1987
Camaro
V8 5.0L
1986
Monte Carlo
V8 5.0L
1986
El Camino
V8 5.0L
1986
Caprice
V8 5.7L
1986
Camaro
V6 2.8L
1986
Camaro
V8 5.0L
1985
Monte Carlo
V8 5.0L
1985
Impala
V8 5.0L
1985
Impala
V8 5.7L
1985
El Camino
V8 5.0L
1985
Caprice
V8 5.7L
1985
Caprice
V8 5.0L
1985
Camaro
V6 2.8L
1985
Camaro
V8 5.0L
1984
Monte Carlo
V8 5.0L
1984
Monte Carlo
V6 3.8L
1984
Impala
V6 3.8L
1984
Impala
V8 5.7L
1984
El Camino
V8 5.0L
1984
El Camino
V6 3.8L
1984
Caprice
V8 5.0L
1984
Caprice
V6 3.8L
1984
Camaro
V6 2.8L
1984
Camaro
V8 5.0L
1983
Monte Carlo
V8 5.0L
1983
Monte Carlo
V6 3.8L
1983
Malibu
V8 5.0L
1983
Malibu
V6 3.8L
1983
Impala
V6 3.8L
1983
Impala
V8 5.7L
1983
El Camino
V8 5.0L
1983
El Camino
V6 3.8L
1983
Caprice
V8 5.0L
1983
Caprice
V6 3.8L
1983
Camaro
V6 2.8L
1983
Camaro
V8 5.0L
1982
Camaro
V8 5.0L
GMC
OLDSMOBILE
PONTIAC
YEAR
MODEL
ENGINE
1992
Firebird
V8 5.0L
1992
Firebird
V6 3.1L
1991
Firebird
V6 3.1L
1991
Firebird
V8 5.0L
1990
Firebird
V6 3.1L
1990
Firebird
V8 5.0L
1989
Firebird
V6 2.8L
1989
Firebird
V8 5.0L
1988
Firebird
V6 2.8L
1988
Firebird
V8 5.0L
1987
Grand Prix
V8 5.0L
1987
Firebird
V6 2.8L
1987
Firebird
V8 5.0L
1986
Parisienne
V8 5.0L
1986
Grand Prix
V8 5.0L
1986
Firebird
V6 2.8L
1986
Firebird
V8 5.0L
1986
Bonneville
V8 5.0L
1985
Parisienne
V8 5.0L
1985
Grand Prix
V8 5.0L
1985
Firebird
V6 2.8L
1985
Firebird
V8 5.0L
1985
Bonneville
V8 5.0L
1984
Parisienne
V8 5.0L
1984
Grand Prix
V8 5.0L
1984
Firebird
V6 2.8L
1984
Firebird
V8 5.0L
1984
Bonneville
V8 5.0L
1983
Parisienne
V8 5.0L
1983
Firebird
V6 2.8L
1983
Firebird
V8 5.0L
1982
Firebird
V8 5.0L
