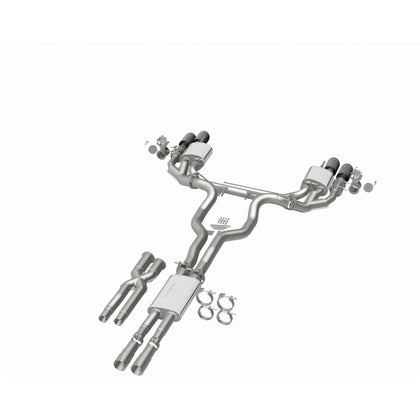

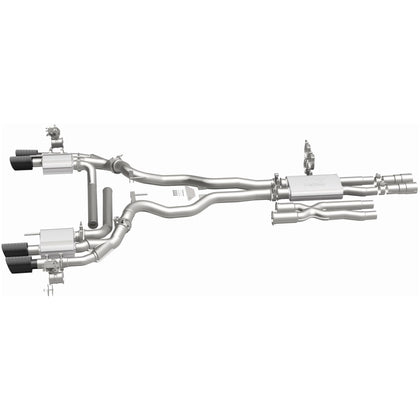

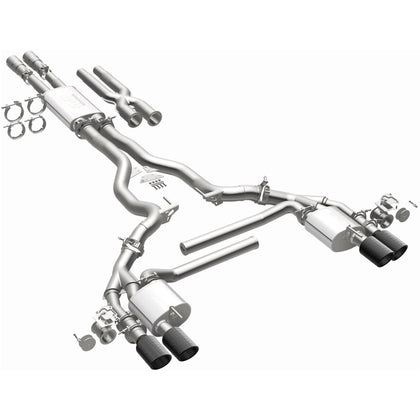

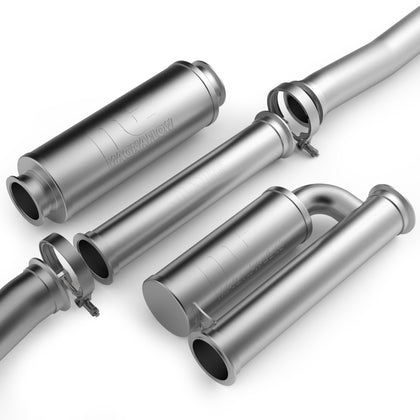

MagnaFlow 2018-2023 Ford Mustang xMOD Series Cat-Back Performance Exhaust System
SKU: 19535
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- TYPE
- Cat-Back
- MOUNTING BRACKET INCLUDED
- No
- GASKET OR SEAL INCLUDED
- Yes
- INLET TYPE
- Clamp-On
- EXHAUST TIP QUANTITY
- 4
- EXHAUST TIP DIAMETER
- 4IN
- EXHAUST TIP FINISH
- Carbon Fiber
FEATURES
DRONE-FREE DRIVING
MagnaFlow’s No Drone Technology utilizes quarter-wave passive noise cancellation to eliminate unwanted droning frequencies for improved interior comfort and sound.
EXTREME PERFORMANCE
Rigorous research and engineering goes into making sure that every xMOD Series exhaust system maximizes the performance of your vehicle no matter which module you choose to install.
MODULARITY WITHOUT LIMITS
Configure your Mustang GT's sound utilizing specifically engineered, interchangeable modules. Easily switch from the signature deep MagnaFlow rumble to a throaty racing-inspired tone.
MULTIPLE PERSONALITIES—ONE EXHAUST
Change up your sound to match your mood. From our classic MagnaFlow tone to the xTreme Delete straight-pipe experience, the xMOD Series is the perfect exhaust for every situation.
Hear the MagnaFlow Difference Engineered for Power and Sound
AGGRESSIVE TO VERY AGGRESSIVE
Configurable Sound Level
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- TYPE
- Cat-Back
- MOUNTING BRACKET INCLUDED
- No
- GASKET OR SEAL INCLUDED
- Yes
- INLET TYPE
- Clamp-On
- EXHAUST TIP QUANTITY
- 4
- EXHAUST TIP DIAMETER
- 4IN

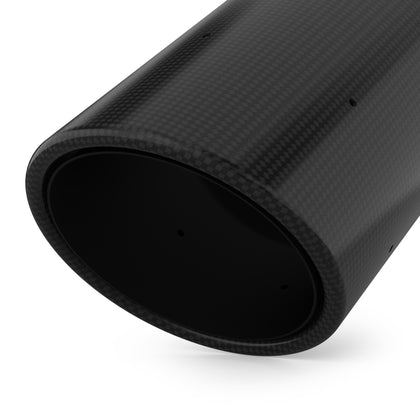

- EXHAUST TIP FINISH
- Carbon Fiber
- EXHAUST TIP MATERIAL
- Carbon Fiber

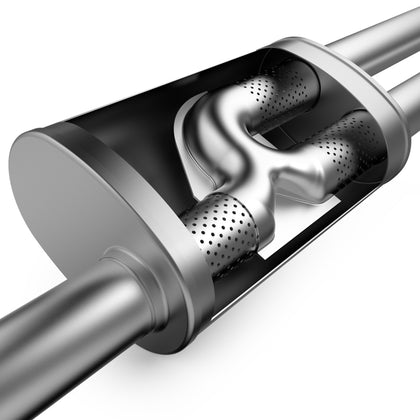

- MUFFLER TYPE
- Straight-Through;Tuned Chamber
- CLAMPS INCLUDED
- Yes
- PIPE MATERIAL
- Stainless Steel
- CLAMPING TYPE
- Round BandV Band
- HANGERS INCLUDED
- Yes
- MUFFLER BODY MATERIAL
- Stainless Steel
- MUFFLER QUANTITY
- 5
- VALVE INCLUDED
- Yes
- EXIT STYLE
- Quad Split Rear
- MAIN PIPING DIAMETER
- 3IN
- EXHAUST TIP CONNECTION
- Welded-On
- EXHAUST TIP WALL
- Double Wall
- EXHAUST TIP CUT
- Angle Cut
- EXHAUST TIP EDGE
- Rolled Edge
- EXHAUST TIP RESONATED
- No
- EXHAUST TIP INTERCOOLED
- No
- MUFFLER FINISH
- Polished
- EXHAUST TIP LENGTH
- 7.75IN
- EXHAUST TIP SHAPE
- Round
- SERIES
- xMOD

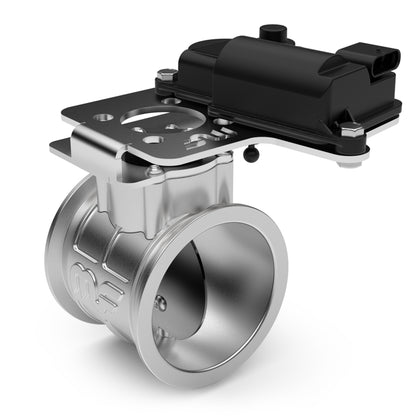

- VALVE TYPE
- Actuated
- MUFFLER (CENTER) BODY HEIGHT
- 4IN
- MUFFLER (FRONT) BODY LENGTH
- 14IN
- MUFFLER (FRONT) BODY WIDTH
- 9IN
- MUFFLER (REAR INNER) BODY HEIGHT
- 2.5IN
- MUFFLER (REAR INNER) BODY LENGTH
- 26.625IN
- MUFFLER (REAR INNER) BODY WIDTH
- 2.5IN
- MUFFLER (REAR OUTER) BODY HEIGHT
- 5IN
- MUFFLER (REAR OUTER) BODY LENGTH
- 8IN
- MUFFLER (REAR OUTER) BODY WIDTH
- 8IN
- MUFFLER (FRONT) TYPE
- Straight-Through
- MUFFLER (REAR INNER) TYPE
- Tuned Chamber
- MUFFLER (REAR OUTER) TYPE
- Straight-Through
- CATALYTIC CONVERTER INCLUDED
- No
- MUFFLER TYPE POSITION FRONT
- Straight-Through
- MUFFLER TYPE POSITION REAR INSIDE
- Tuned Chamber
- MUFFLER TYPE POSITION REAR OUTSIDE
- Straight-Through
- MUFFLER BODY LENGTH POSITION FRONT
- 14IN
- MUFFLER BODY WIDTH POSITION FRONT
- 9IN
- MUFFLER BODY HEIGHT POSITION CENTER
- 4IN
- MUFFLER BODY HEIGHT POSITION REAR INSIDE
- 2.5IN
- MUFFLER BODY HEIGHT POSITION REAR OUTSIDE
- 5IN
- MUFFLER BODY LENGTH POSITION REAR INSIDE
- 26.625IN
- MUFFLER BODY LENGTH POSITION REAR OUTSIDE
- 8IN
- MUFFLER BODY WIDTH POSITION REAR INSIDE
- 2.5IN
- MUFFLER BODY WIDTH POSITION REAR OUTSIDE
- 8IN
HARDWARE KIT
2.5IN. BAND CLAMPS
2
SCREWS
6
3IN. V-BAND CLAMPS
6
WASHERS
12
LOGO PLATE
1
2.5IN. V-BAND CLAMPS
8
BLOCK OFF PLATES
2
1-BOLT GASKETS
2
NUTS
6
WARRANTY
CONSTRUCTION WARRANTY
INSTALLATION
Bolt-on installation. May require basic automotive knowledge for proper installation and professional installation is always recommended.
DO IT YOURSELF
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
