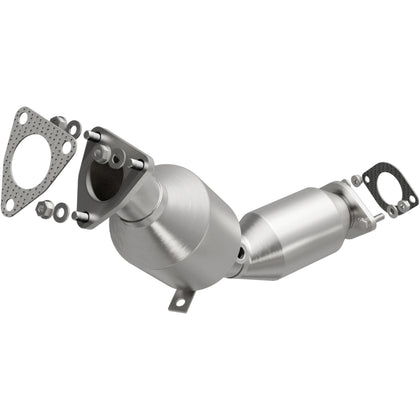

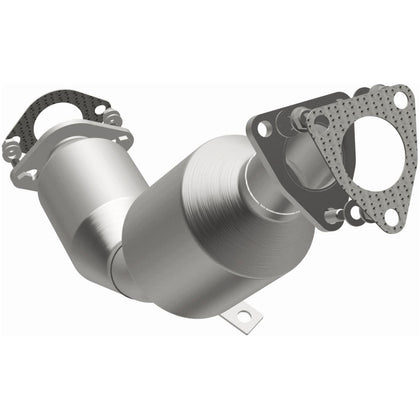

MagnaFlow 2004-2008 INFINITI FX35 3.5L California Grade CARB Compliant Direct-Fit Catalytic Converter 5481098
SKU: 5481098
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- Legal For Sale In All 50 States Including California, Colorado, New York and Maine. Installation is permitted only if the vehicle’s Executive Order number and Engine Family Number appear in this converter’s CARB Executive Order.
- INLET TYPE
- Flange
- CLAMPS INCLUDED
- No
- HANGERS INCLUDED
- No
- SERIES
- California
MATERIAL
Stainless Steel
BODY TYPE
Spun
FINISH
Stainless
FEATURES

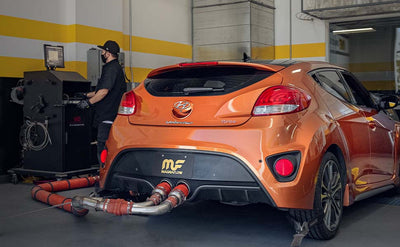

CALIFORNIA/CARB COMPLIANT
Extensive testing and certification processes are followed to guarantee that this catalytic converter meets emissions standards set by CARB (California Air Resources Board). This catalytic converter is also compliant in states adhering to these standards.
CARB GRADE
This catalytic converter is designed to meet California emissions standards, as well of those of other CARB-regulated states.

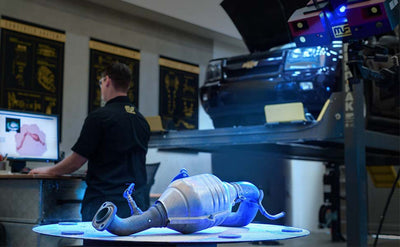

DIRECT-FIT INSTALLATION
State-Of-the-Art 3D scanning is used to ensure this direct-fit catalytic converter perfectly fits your vehicle, enabling do-it-yourself installation.

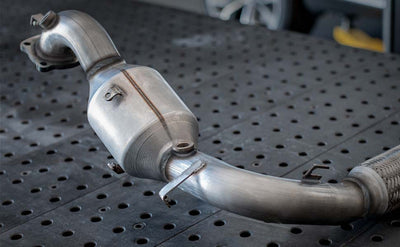

CUTTING EDGE DESIGN
Durable stainless-steel construction, mandrel bent piping, precisely manufactured flared receivers, OEM-like O2 port locations and integrated butt joints make installation easy while guaranteeing optimal performance.
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- INLET TYPE
- Flange
- CLAMPS INCLUDED
- No
- HANGERS INCLUDED
- No
- SERIES
- California
- MATERIAL
- Stainless Steel
- BODY TYPE
- Spun
- FINISH
- Stainless
- TUBE MATERIAL
- Stainless Steel
- OUTLET TYPE
- Flange
- INLET INSIDE DIAMETER
- 2.25IN
- HEAT SHIELD ATTACHED
- No
- INLET QUANTITY
- 1
- BODY MATERIAL
- Stainless Steel
- OUTLET INSIDE DIAMETER
- 2.25IN
- OUTLET QUANTITY
- 1
- CALIFORNIA AIR RESOURCES BOARD (CARB) CERTIFIED
- Yes
- SUBSTRATE MATERIAL
- Ceramic
- UNIVERSAL OR SPECIFIC FIT
- Specific
- GRADE TYPE
- Regular
- BODY SHAPE
- Round
- INLET GASKET INCLUDED
- Yes
- INLET MOUNTING HARDWARE INCLUDED
- Yes
- OUTLET GASKET INCLUDED
- Yes
- OUTLET MOUNTING HARDWARE INCLUDED
- Yes
- OVERALL LENGTH
- 18.125IN
- AIR TUBE COUNT
- 0
- SENSOR PORT COUNT
- 1
- NEW YORK CERTIFIED
- Yes
- OXYGEN SENSOR LOCATION
- Post Converter
- AIR TUBE ADAPTABLE
- No
- CARB EXECUTIVE ORDER NUMBER
- D-193-177
- BODY HEIGHT POSITION FRONT
- 5IN
- BODY HEIGHT POSITION REAR
- 4IN
- BODY LENGTH POSITION FRONT
- 8.5IN
- BODY LENGTH POSITION REAR
- 8.25IN
- BODY WIDTH POSITION FRONT
- 5IN
- BODY WIDTH POSITION REAR
- 4IN
HARDWARE KIT
NUTS
5
BOLTS
5
FLAT WASHERS
5
FLANGE GASKETS
2
WARRANTY
CONSTRUCTION WARRANTY
EMISSIONS WARRANTY
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
INFINITI
YEAR
MODEL
ENGINE
2008
FX35
V6 3.5L
2007
FX35
V6 3.5L
2006
FX35
V6 3.5L
2005
FX35
V6 3.5L
2004
FX35
V6 3.5L
