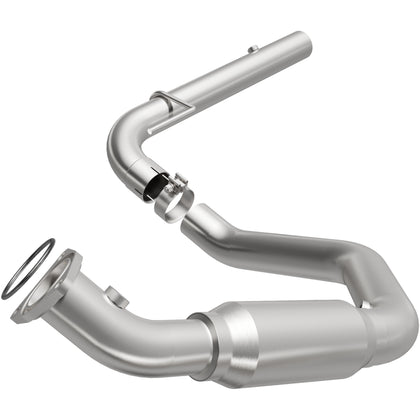

MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5451525
SKU: 5451525
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
Technical Service Bulletin Available
- view service alerts- Legal For Sale In All 50 States Including California, Colorado, New York and Maine. Installation is permitted only if the vehicle’s Executive Order number and Engine Family Number appear in this converter’s CARB Executive Order.
- INLET TYPE
- Flange
- CLAMPS INCLUDED
- Yes
- HANGERS INCLUDED
- Yes
- SERIES
- California
MATERIAL
Stainless Steel
BODY TYPE
Spun
FINISH
Stainless
FEATURES
CALIFORNIA/CARB COMPLIANT
Extensive testing and certification processes are followed to guarantee that this catalytic converter meets emissions standards set by CARB (California Air Resources Board). This catalytic converter is also compliant in states adhering to these standards.
CARB GRADE
This catalytic converter is designed to meet California emissions standards, as well of those of other CARB-regulated states.

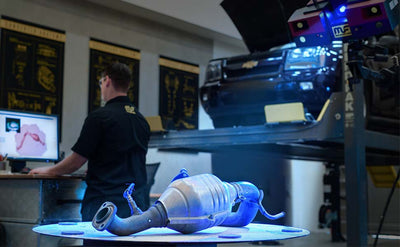

DIRECT-FIT INSTALLATION
State-Of-the-Art 3D scanning is used to ensure this direct-fit catalytic converter perfectly fits your vehicle, enabling do-it-yourself installation.

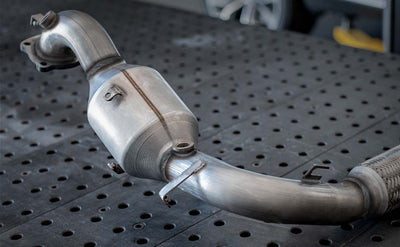

CUTTING EDGE DESIGN
Durable stainless-steel construction, mandrel bent piping, precisely manufactured flared receivers, OEM-like O2 port locations and integrated butt joints make installation easy while guaranteeing optimal performance.
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- INLET TYPE
- Flange
- CLAMPS INCLUDED
- Yes
- HANGERS INCLUDED
- Yes
- SERIES
- California
- MATERIAL
- Stainless Steel
- BODY TYPE
- Spun
- FINISH
- Stainless
- TUBE MATERIAL
- Stainless Steel
- OUTLET TYPE
- Pipe Connection
- HEAT SHIELD ATTACHED
- No
- BODY MATERIAL
- Stainless Steel
- CALIFORNIA AIR RESOURCES BOARD (CARB) CERTIFIED
- Yes
- SUBSTRATE MATERIAL
- Ceramic
- UNIVERSAL OR SPECIFIC FIT
- Specific
- GRADE TYPE
- Regular
- INLET GASKET INCLUDED
- Yes
- INLET MOUNTING HARDWARE INCLUDED
- No
- OUTLET GASKET INCLUDED
- No
- OUTLET MOUNTING HARDWARE INCLUDED
- No
- OVERALL LENGTH
- 61.5IN
- AIR TUBE COUNT
- 0
- SENSOR PORT COUNT
- 3
- NEW YORK CERTIFIED
- Yes
- OXYGEN SENSOR LOCATION
- Pre and Post Converter
- AIR TUBE ADAPTABLE
- No
- CARB EXECUTIVE ORDER NUMBER
- D-193-193
HARDWARE KIT
TORCA CLAMP
1
O2 PORT PLUG
1
CRUSH RING GASKET
1
WARRANTY
CONSTRUCTION WARRANTY
EMISSIONS WARRANTY
SERVICE ALERTS
General Motors Catalytic Converter Break-In Steps
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
CHEVROLET
YEAR
MODEL
ENGINE
2009
Express 3500
V8 6.0L
2009
Express 3500
V8 4.8L
2009
Express 2500
V8 4.8L
2009
Express 2500
V8 6.0L
2008
Express 3500
V8 6.0L
2008
Express 3500
V8 4.8L
2008
Express 2500
V8 4.8L
2008
Express 2500
V8 6.0L
2007
Express 3500
V8 6.0L
2007
Express 3500
V8 4.8L
2007
Express 2500
V8 6.0L
2007
Express 2500
V8 4.8L
GMC
YEAR
MODEL
ENGINE
2009
Savana 3500
V8 6.0L
2009
Savana 3500
V8 4.8L
2009
Savana 2500
V8 6.0L
2009
Savana 2500
V8 4.8L
2008
Savana 3500
V8 6.0L
2008
Savana 3500
V8 4.8L
2008
Savana 2500
V8 6.0L
2008
Savana 2500
V8 4.8L
2007
Savana 3500
V8 6.0L
2007
Savana 3500
V8 4.8L
2007
Savana 2500
V8 6.0L
2007
Savana 2500
V8 4.8L
