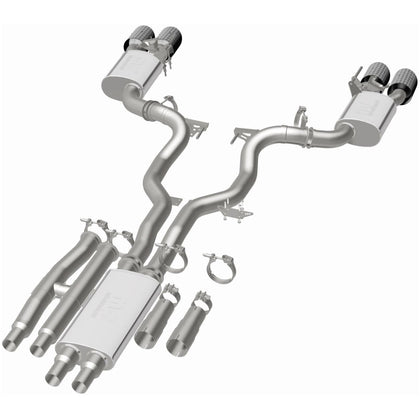

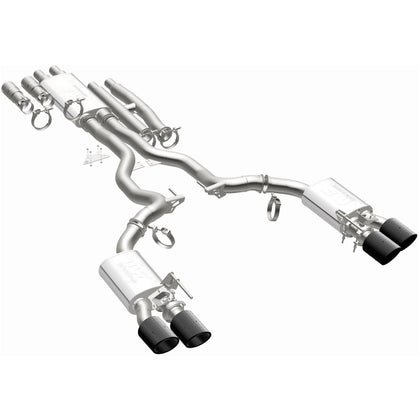

MagnaFlow 2024-2026 Ford Mustang 5.0L xMOD Series Cat-Back Performance Exhaust System 19695
SKU: 19695
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- TYPE
- Cat-Back
- MOUNTING BRACKET INCLUDED
- Yes
- GASKET OR SEAL INCLUDED
- No
- EXHAUST TIP QUANTITY
- 4
- EXHAUST TIP DIAMETER
- 4.5IN

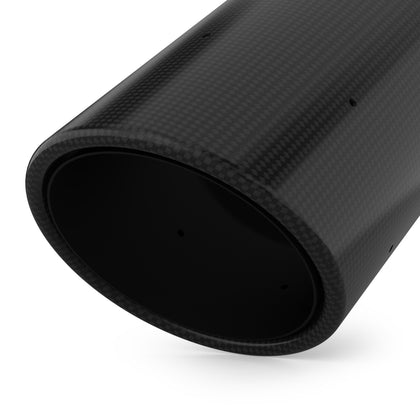

- EXHAUST TIP FINISH
- Carbon Fiber
- EXHAUST TIP MATERIAL
- Carbon Fiber
FEATURES

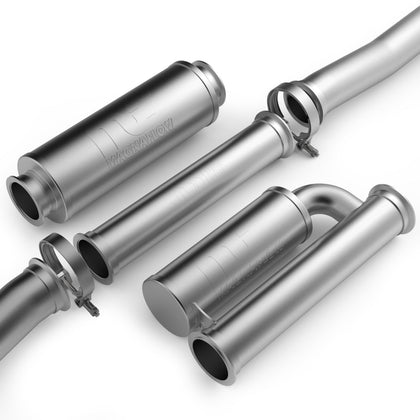

MODULARITY WITHOUT LIMITS
Configure your Mustang’s sound utilizing specifically engineered, interchangeable modules. Easily switch from the signature deep MagnaFlow rumble to a throaty racing-inspired tone.

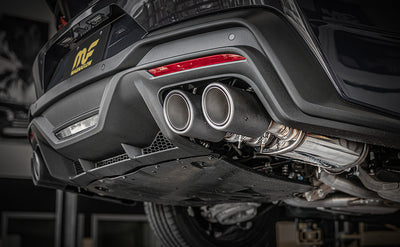

DRONE-FREE DRIVING
MagnaFlow’s No Drone Technology, along with careful muffler design and placement, eliminates unwanted droning frequencies for improved interior comfort and sound.

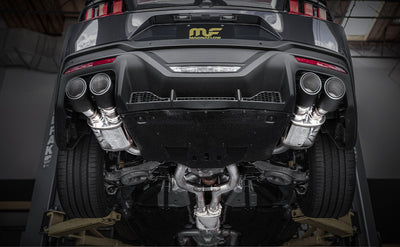

EXTREME PERFORMANCE
Rigorous research and engineering goes into making sure that every xMOD Series exhaust system maximizes the performance of your vehicle no matter which module you choose to install.

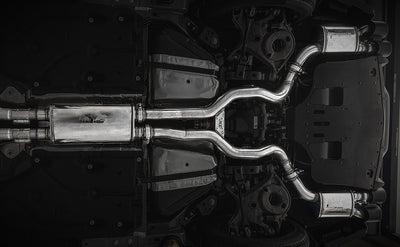

MULTIPLE PERSONALITIES—ONE EXHAUST
Change up your sound to match your mood. From our classic MagnaFlow tone to the xTreme Delete straight-pipe experience, the xMOD Series is the perfect exhaust for every situation.
Hear the MagnaFlow Difference Engineered for Power and Sound
AGGRESSIVE TO VERY AGGRESSIVE
Configurable Sound Level
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- TYPE
- Cat-Back
- MOUNTING BRACKET INCLUDED
- Yes
- GASKET OR SEAL INCLUDED
- No
- EXHAUST TIP QUANTITY
- 4
- EXHAUST TIP DIAMETER
- 4.5IN
- EXHAUST TIP FINISH
- Carbon Fiber
- EXHAUST TIP MATERIAL
- Carbon Fiber

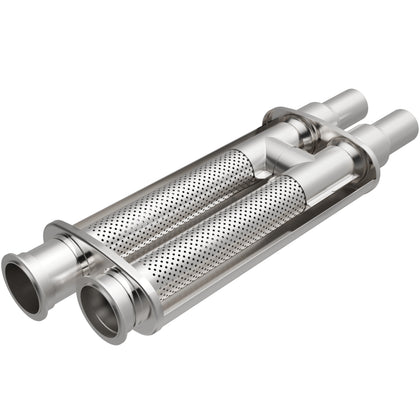

- MUFFLER TYPE
- Straight-Through
- CLAMPS INCLUDED
- Yes
- PIPE MATERIAL
- Stainless Steel

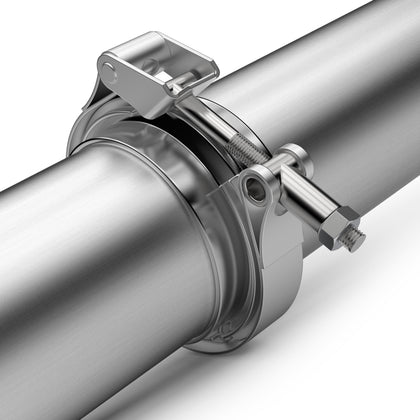

- CLAMPING TYPE
- V Band
- HANGERS INCLUDED
- Yes
- MUFFLER BODY MATERIAL
- Stainless Steel
- MUFFLER QUANTITY
- 3
- VALVE INCLUDED
- Yes
- EXIT STYLE
- Quad Split Rear
- MAIN PIPING DIAMETER
- 3IN
- EXHAUST TIP CONNECTION
- Welded-On
- EXHAUST TIP WALL
- Double Wall
- EXHAUST TIP CUT
- Angle Cut
- EXHAUST TIP EDGE
- Folded Edge
- EXHAUST TIP RESONATED
- No
- EXHAUST TIP INTERCOOLED
- No
- MUFFLER FINISH
- Brushed
- EXHAUST TIP LENGTH
- 6.75IN
- EXHAUST TIP SHAPE
- Round
- SERIES
- xMod
- VALVE TYPE
- Passive
- MUFFLER (FRONT) BODY HEIGHT
- 4IN
- MUFFLER (FRONT) BODY LENGTH
- 11IN
- MUFFLER (FRONT) BODY WIDTH
- 9IN
- MUFFLER (REAR) BODY HEIGHT
- 5IN
- MUFFLER (REAR) BODY LENGTH
- 11IN
- MUFFLER (REAR) BODY WIDTH
- 8IN
- CATALYTIC CONVERTER INCLUDED
- No
HARDWARE KIT
2.5IN. V-BAND CLAMPS
4
2.5IN. BAND CLAMPS
2
3IN. V-BAND CLAMPS
6
SCREWS
4
ACTUATOR SHIELDS
2
BLOCK OFF PLATES
2
WASHERS
8
NUTS
4
WARRANTY
CONSTRUCTION WARRANTY
INSTALLATION
Bolt-on installation. May require basic automotive knowledge for proper installation and professional installation is always recommended.
