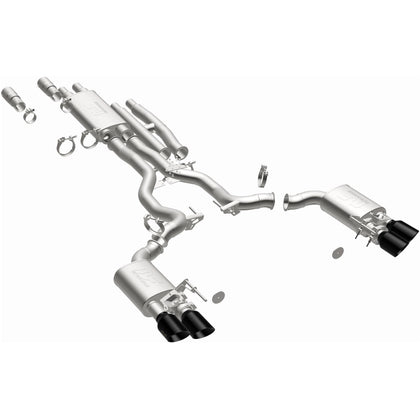

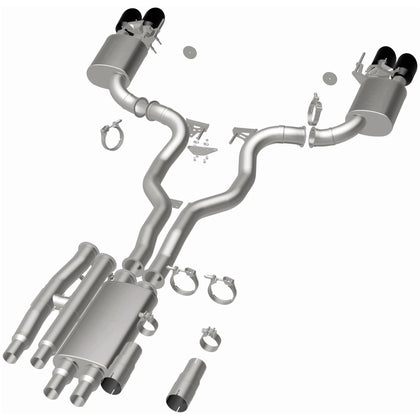

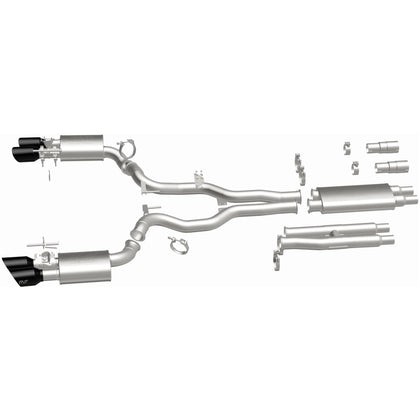

MagnaFlow 2024-2025 Ford Mustang xMOD Series Cat-Back Performance Exhaust System
SKU: 19646
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- TYPE
- Cat-Back
- MOUNTING BRACKET INCLUDED
- No
- GASKET OR SEAL INCLUDED
- No
- INLET TYPE
- Clamp-On
- EXHAUST TIP QUANTITY
- 2
- EXHAUST TIP DIAMETER
- 4IN

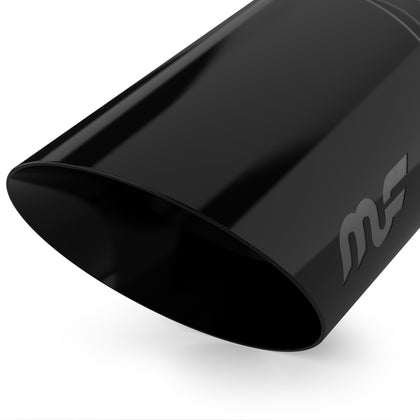

- EXHAUST TIP FINISH
- Black Chrome
FEATURES
MODULARITY WITHOUT LIMITS
Configure your Mustang’s sound utilizing specifically engineered, interchangeable modules. Easily switch from the signature deep MagnaFlow rumble to a throaty racing-inspired tone.

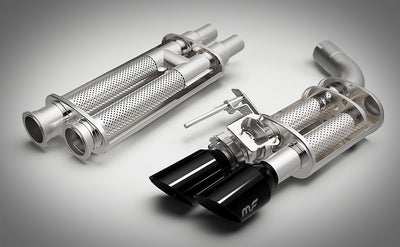

REDESIGNED FOR THE S650

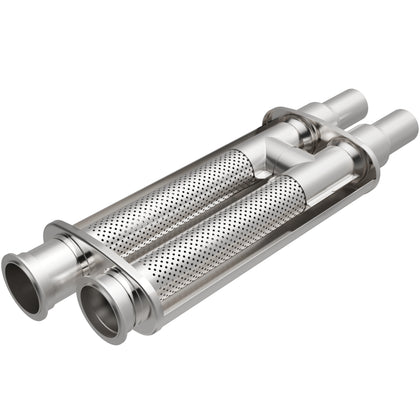

All-new performance chambered muffler and resonator with internal H-pipe design help unleash that Mustang sound that owners know and love.

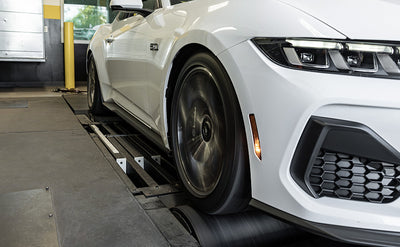

EXTREME PERFORMANCE
Rigorous research and engineering goes into making sure that every xMOD Series exhaust system maximizes the performance of your vehicle no matter which module you choose to install.
MULTIPLE PERSONALITIES—ONE EXHAUST
Change up your sound to match your mood. From our classic MagnaFlow tone to the xTreme Delete straight-pipe experience, the xMOD Series is the perfect exhaust for every situation.
Hear the MagnaFlow Difference Engineered for Power and Sound
AGGRESSIVE TO VERY AGGRESSIVE
Configurable Sound Level
360° VIEW
Take it for a spin and check out every detail.
KEY DETAILS
SPECIFICATIONS
- TYPE
- Cat-Back
- MOUNTING BRACKET INCLUDED
- No
- GASKET OR SEAL INCLUDED
- No
- INLET TYPE
- Clamp-On
- EXHAUST TIP QUANTITY
- 2
- EXHAUST TIP DIAMETER
- 4IN
- EXHAUST TIP FINISH
- Black Chrome
- EXHAUST TIP MATERIAL
- Stainless Steel
- MUFFLER TYPE
- Chambered
- CLAMPS INCLUDED
- Yes
- PIPE MATERIAL
- Stainless Steel
- CLAMPING TYPE
- Round BandV Band
- HANGERS INCLUDED
- Yes
- MUFFLER QUANTITY
- 3
- VALVE INCLUDED
- Yes
- EXIT STYLE
- Quad Split Rear
- MAIN PIPING DIAMETER
- 3IN
- EXHAUST TIP CONNECTION
- Welded-On
- EXHAUST TIP WALL
- Double Wall
- EXHAUST TIP CUT
- Angle Cut
- EXHAUST TIP EDGE
- Folded Edge
- EXHAUST TIP RESONATED
- No
- EXHAUST TIP INTERCOOLED
- No
- MUFFLER FINISH
- Brushed
- EXHAUST TIP LENGTH
- 7IN
- EXHAUST TIP SHAPE
- Round
- SERIES
- xMOD

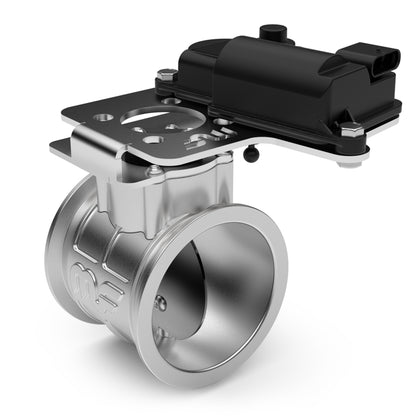

- VALVE TYPE
- Actuated
- MUFFLER (FRONT) BODY HEIGHT
- 4IN
- MUFFLER (FRONT) BODY LENGTH
- 18IN
- MUFFLER (FRONT) BODY WIDTH
- 9IN
- MUFFLER (REAR) BODY HEIGHT
- 5IN
- MUFFLER (REAR) BODY LENGTH
- 11IN
- MUFFLER (REAR) BODY WIDTH
- 8IN
- CATALYTIC CONVERTER INCLUDED
- No
- MUFFLER BODY HEIGHT POSITION REAR
- 5IN
- MUFFLER BODY WIDTH POSITION REAR
- 8IN
- MUFFLER BODY HEIGHT POSITION FRONT
- 4IN
- MUFFLER BODY LENGTH POSITION FRONT
- 18IN
- MUFFLER BODY LENGTH POSITION REAR
- 11IN

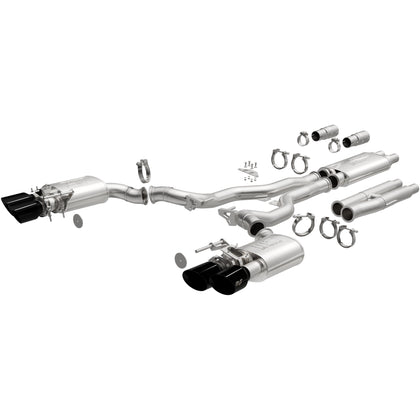

HARDWARE KIT
2.5IN. V-BAND CLAMPS
4
2.5IN. BAND CLAMPS
2
BLOCK OFF PLATES
2
SCREWS
4
3IN. V-BAND CLAMPS
6
WASHERS
8
NUTS
4
WARRANTY
FINISH WARRANTY
CONSTRUCTION WARRANTY
INSTALLATION
Bolt-on installation. May require basic automotive knowledge for proper installation and professional installation is always recommended.
DO IT YOURSELF
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
